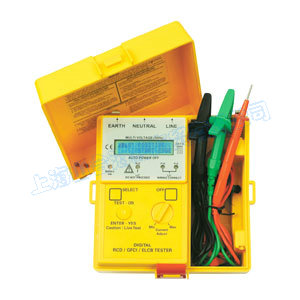

                                                  1813 EL   ELCB Testers



Up To 1000mA







                                                  1813 EL












                                                     FEATURES











                                                   2 Lines x 16 characters.






                                                   Very low consumption.






                                                   Microprocessor controlled.






                                                   Suitable for industrial applications.






                                                   Battery than 3% accuracy (current).






                                                   Menu driven.






                                                   Accurate digital readout of disconnection time.






                                                   Accurate digital readout of disconnection sensitivity.






                                                   Automatic data hold function.






                                                   Zero crossing circuitry permit testing at 0 degree or 180 degree.






                                                   Disconnection phase polarity shown on L.C.D. display.






                                                   Auto-off and Off override.






                                                   Polarity trip indicator (positive or negative phase).






                                                   Wiring polarity indicator.






                                                   Measure voltage between Line and Earth before testing.






                                                   60Hz available.





























                                                   SPECIFICATIONS












                                                  System Voltage (50Hz/60Hz)
                                                  550V, 380V, 240V






                                                  Current Settings
                                                  2-999mAac/50Hz






                                                  Current Selection
                                                  Knob






                                                  Phase Start Selection Referenced to Earth
                                                  0 degree and 180 degree






                                                  Over-Temperature Protection
                                                  Yes






                                                  Wiring Correctness Indication
                                                  Yes






                                                  Phase Polarity Trip Indicator
                                                  Yes






                                                  Operating Voltage (L-E)
                                                  110 Vac to 317 Vac






                                                  Timer Resolution
                                                  1mS (max time=19.999s)






                                                  Timer Accuracy
                                                  +/-1% +/-1mS






                                                  Current Accuracy
                                                  +/- 1% +/-1mA






                                                  Acurrent Resolution
                                                  1mA






                                                  Voltmeter Accuracy (50Hz)
                                                  50-350 Vac = +/- 2% +/- 1V, 350-450 Vac =+/- 5% +/- 1V






                                                  Voltmeter Resolution
                                                  1V






                                                  Operating Temperature
                                                  -5 degree C to 45 degree C






                                                  Storage Temperature
                                                  -10 degree C to 85 degrcc C






                                                  Power Source
                                                  1.5V (AA) x 8 batteries, Bat OK Led Vbat > 7.5V






                                                  Dimensions
                                                  170(L) x 165(W) x 92(D) mm






                                                  Weight
                                                  Approx. 1300g (battery included)






                                                  Accessories
                                                  Test leads (TEL-1813), shoulder belt (BET-1800), instruction namual, batteries















    特 點





● 微處理器控制系統設計。

      ● 使用16字 x 2行的液晶顯示器。

      ● 電池能量低消耗。

      ● 操作程序逐次顯示。

      ●   讀值自動鎖定功能。

      ● 準確的跳脫時間顯示。

      ● 可作相位選擇。

      ● 跳脫時的極性顯示。

      ● 自動關機。

      ●   接線的極性顯示。

      ● 可作Line-Earth的電壓和頻率量測。










     規 格 (23°C±5°C   ＜80%R.H.)



















                    適用的電源系統

                      (50/60Hz)
                    550V

                      380V

                      240V




                    電流設定範圍
                    2-999mA   ac




                    電流選擇方式
                    旋鈕




                    相位選擇
                    0°與180°




                    過溫保護
                    有




                    跳脫指示和極性指示
                    有(LED)




                    操作電壓(L-E)
                    110 Vac to   317 Vac




                    時間解析度
                    1微秒(Z長量測時間19.999秒)




                    電流解析度
                    1mA




                    電流準確度
                    ±1%±1Am




                    電壓測量準確度
                    50-350Vac±2%±1V

                      350-450Vac±5%±1V




                    操作溫濕度
                    5°C-40°CZ大相對濕度80%




                    儲存溫濕度
                    -10°C-55°CZ大相對濕度80%




                    外形尺寸
                    170(長)×165(寬)×92(高)mm




                    重量
                    約1300克(含電池)




                    使用電池
                    1.5V乾電池(AA)×8(顆)

                      LED正常指示:>7.5V
