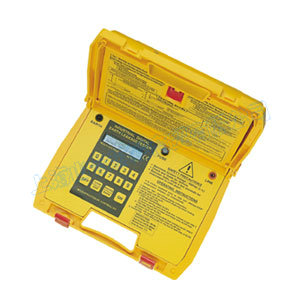

                                                  6220 EL   ELCB Testers



      Up To 1000mA







                                                  6220 EL












                                                     FEATURES











                                                   Microprocessor technology ensures high performance accuracy and reliability.






                                                   Fully programmable via tactile key pad.






                                                   Direct readout of disconnection, time or current.






                                                   Voltage measured during test.






                                                   Housed in a heavy duty carry case.






                                                   Suitable for all industrial, mining and domestic environments.






                                                   Display can be customized for special orders.






                                                   Indicate voltage and trip current/time.






                                                   Use binary principle.






                                                   True resistor switching.






























                                                   SPECIFICATIONS












                                                  Rated Tripping Current at 317V
                                                  1000mV (2000mA on special orders)






                                                  Lowest Resolution
                                                  1mA






                                                  System Voltage
                                                  230 / 380 / 550V / 50Hz






                                                  Maximum Trip Time
                                                  99.99s






                                                  Highest Resolution
                                                  10mS






                                                  Typical Accuracy







                                                  Rated Trip Current
                                                  +/- 1%rdg +/- 2dgt






                                                  Voltage Range
                                                  +/- 1%rdg +/- 1dgt






                                                  Trip Time
                                                  +/- 1%rdg +/- 2dgt






                                                  Operating Temperature
                                                  0 degree C  ~  40 degree C






                                                  Humidity
                                                  80%






                                                  Power Source
                                                  1.5V "C" Alkaline x 8 batteries






                                                  Dimensions
                                                  330(L) x 260(W) x 160(D) mm






                                                  Weight
                                                  Approx. 3.7kg (battery included)






                                                  Accessories
                                                  Test leads







                                                  Instruction manual







                                                  Batteries
















    特 點





      ● 微處理器系統控制設計，確保高性能的準確性與KK性

      ● 適合在工業、礦業或家庭使用

      ● 使用按鍵作各種操作

      ●   跳脫時的時間和電流可以直接讀取數值

      ● 在測試當中，可同時量測電壓

      ● 即時顯示電壓、動作電流與時間

      ● 使用二進制原則

      ●   電阻式開關設計

      ● 外箱堅固，易於使用和攜帶










     規   格


















                  額定Z大電流(317V)
                  1000mA

                    (2000mA on special orders)




                  解析度
                  1mA




                  適用系統電壓
                  230   / 380 / 550V(50Hz)




                  測量Z長時間
                  99.99秒




                  跳脫時間準確度
                  ±1%讀值±2位數




                  電壓準確度
                  ±1%讀值±1位數




                  時間準確度
                  ±1%讀值±2位數




                  操作溫度
                  0°C to   40°C




                  操作濕度
                  80%   R.H.Max.




                  外形尺寸
                  330(長)×260(寬)×160(高)mm




                     重量
                  約3.7公斤(含電池)




                  使用電池
                  1.5V〝C〞型×8 鹼性電池
