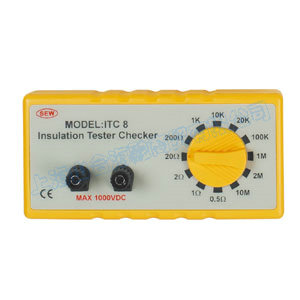

        ITC-8   Resistor Calibration Box
        ITC-8
        FEATURES

         The ICT-8 can be utilized to check calibratino of resistance ranges of insulation testers and multimeters.
         The resistance checker box is also used to verify insulation testers and multimeters.
        SPECIFICATIONS

        Resistance Ranges 0.5 Ohm, 1 Ohm, 2 Ohm, 20 Ohm, 200 Ohm, 1k Ohm, 10k Ohm, 20k Ohm, 100k Ohm, 1M Ohm, 2M Ohm, 10M Ohm
        Accuracy 0.5 Ohm ~ 2 Ohm : +/- 0.05 Ohm
        20 Ohm ~ 10M Ohm : +/- 1%
        Dimensions 150(L) x 72(W) x 60(D)mm
        Weight Approx. 180g
        Safety Standard CAT III 1000Vdc
        EN 55011, EN 61000-4-2, EN 61000-4-3
