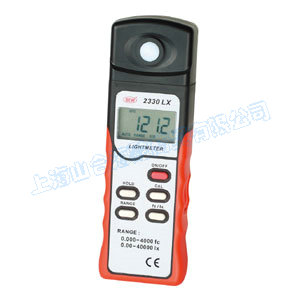

| 2330 LX Light Meter
|
 |
|
|
FEATURES |
| |
 Wide range for measurements as high as 40000 lux and 4000 fc. |
| 0.01 lux and 0.001 fac resolution for accurate low light level measurements. |
| Light sensor cover is included for preserving sensor life. |
| Auto off function. |
| Data hold and peak hold function. |
| Low battery indication. |
| Over range indication. |
| Auto-ranged. |
| Manual-ranged. |
| Calibration mode is provided. |
| 9V battery system. |
| Selection key for lux and fx. |
| The spectral sensitivity close to CIE photopic curve. |
| Ideal tool for workplace, clean-room and computer room light testing. |
| Video, photographic, office classroom, and architectural uses. |
| , , |
|
|
|
| SPECIFICATIONS |
| |
| Measuring Ranges |
39.99/399.9/3999/39990 lx, 3.999/39.99/399.9/3999 fc |
| Resolution |
0.01 lx ~ 10 lx, 0.001 fc ~ 1 fc |
| Accuracy |
+/- (3%rdg+5dgt) Calibrated to standard incandescent lamp, 2856 degree K |
| Display |
40000-count LCD |
| Photosensor |
Silicon photodiode |
| Operatng/storage Conditions |
0 degree C ~ 40 degree C < 80% RH, -10 degree C ~ 50 degree C <70% RH |
| Power Source |
9V (6F22.006p) x 1 battery |
| Dimensions |
194(L) x 62(W) x 34(D)mm |
| Weight |
Appox. 245g (battery is included) |
| Accessories |
Instruction manual |
| |
Battery |
| |
Carry case |
|
| 特 點 |
● 量測範圍寬廣可到40000lux和4000fc。
● 設計有保護蓋，保護光感測器。
● 讀值鎖定、峰值鎖定。
● 自動換檔亦可手動換檔。
● 自動關機。
● 過載顯示。
● 低電源顯示。
●設計有l(wèi)x與fc量測選擇鍵。
● 有校正鍵，進行自動歸零動作。
● ： |
|

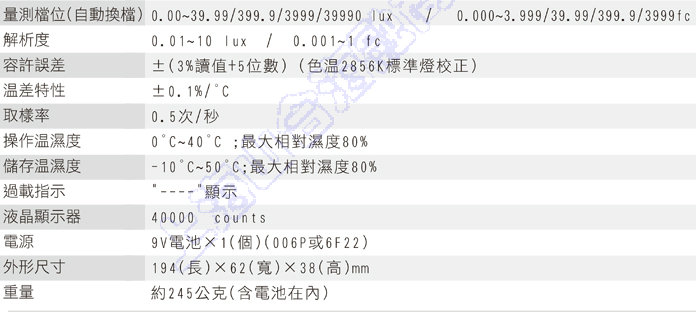

| 規 格 (23°C±5°C ＜80%R.H.) |
 |
|
