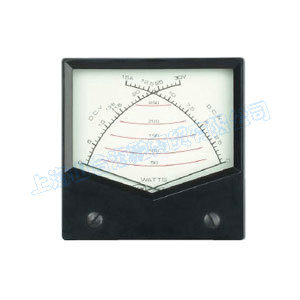

                                                  ST-70W   Panel Meters



            Crossing Type







                                                  ST-70W












                                                     FEATURES











                                                   Sensitivity Full Scale : 100uA DC.






                                                   Internal Resistance : 1100 Ohm.






                                                   Accuracy : Class 2.5.






                                                   Case and Composition : Acrylic resin front and ABS resin case.






                                                   Color : Black case, white scale plate or yellow.

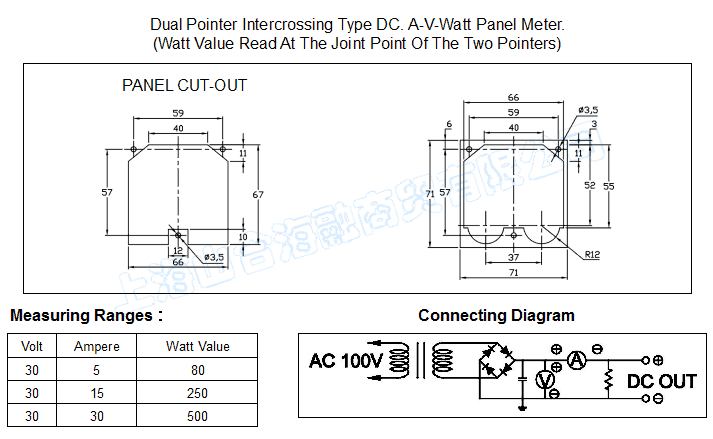

                                                   Dimensions : 70(L) x 70(W) x 30(D)mm.






                                                   Pointer Shape : Knife or Tube-type, color in black or red.
