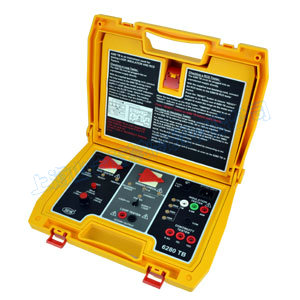

    6280 TB   Test Box
    Functional checking for RCD tester, Loop testers and Insulation/Continuity testers
    6280 TB
    FEATURES

     Wide range of operating voltage from AC 210V/50Hz to 250V/50Hz.
     For checking AC voltage.
     For checking a RCD tester's test current & time in mA(ms).
     For checking a loop tester.
     For wiring check (Phase, Neutral, Earth).
     For checking continuity.
     For checking insulation (The maximum is 1000V).

     6280 TB is an ideal tool which provides verifications of Insulation testers, Continuity testers, RCD testers and Loop testers.
    SPECIFICATIONS

    RCD Testing
    Range 10mA @ 150ms
    30mA @ 150ms
    150mA @ 30ms
    Insulation Testing
    Range 1M Ohm/9.9M Ohm/99M Ohm
    Accuracy +/- 1%
    Max. Testing 1.2kV
    Continuity Testing
    Range 0.5 Ohm/2 Ohm/10 Ohm
    Accuracy +/- 0.05 Ohm / +/- 0.1 Ohm / +/-0.2 Ohm
    Max. Current 300mA
    LOOP Testing
    Range Supply Loop/Supply Loop +1 Ohm
    Accuracy 0.45 Ohm +/- 0.05 Ohm / 1.45 Ohm +/- 0.05 Ohm
    Dimension 330 (L) x 260 (W) x 160 (D) mm
    Weight Approx. 2570 g
